4 inch
EPS 420S LC DIAMOND
0.3mm thickness / 12.7mm arbor / medium grit / low concentration
DIAMOND CUTTING BLADE
절단용 다이아몬드 블레이드
4 inch부터 14 inch까지 정밀 절단용 DIAMOND·CBN 블레이드를 공급합니다. 제품별 두께, arbor, grit, concentration 조건을 확인하고 규격 외 제품은 별도 주문 제작을 상담합니다.
블레이드 상담하기4~6 inch precision blade
EPS 420S, 520S, 615S, 620S, 620P DIAMOND 제품군
7~14 inch cutting blade
EPS 730S, 820S, 830S, 840S, 1020S, 1030S, 1440S DIAMOND 제품군
CBN cutting blade
EPS 740S, 1050S, 1220S, 1430S CBN 제품군
품목별 조회
제품명, 크기, 규격을 한 카드 안에서 확인할 수 있도록 구성했습니다. 사진 영역은 실제 품목 이미지로 교체할 수 있습니다.
4 inch

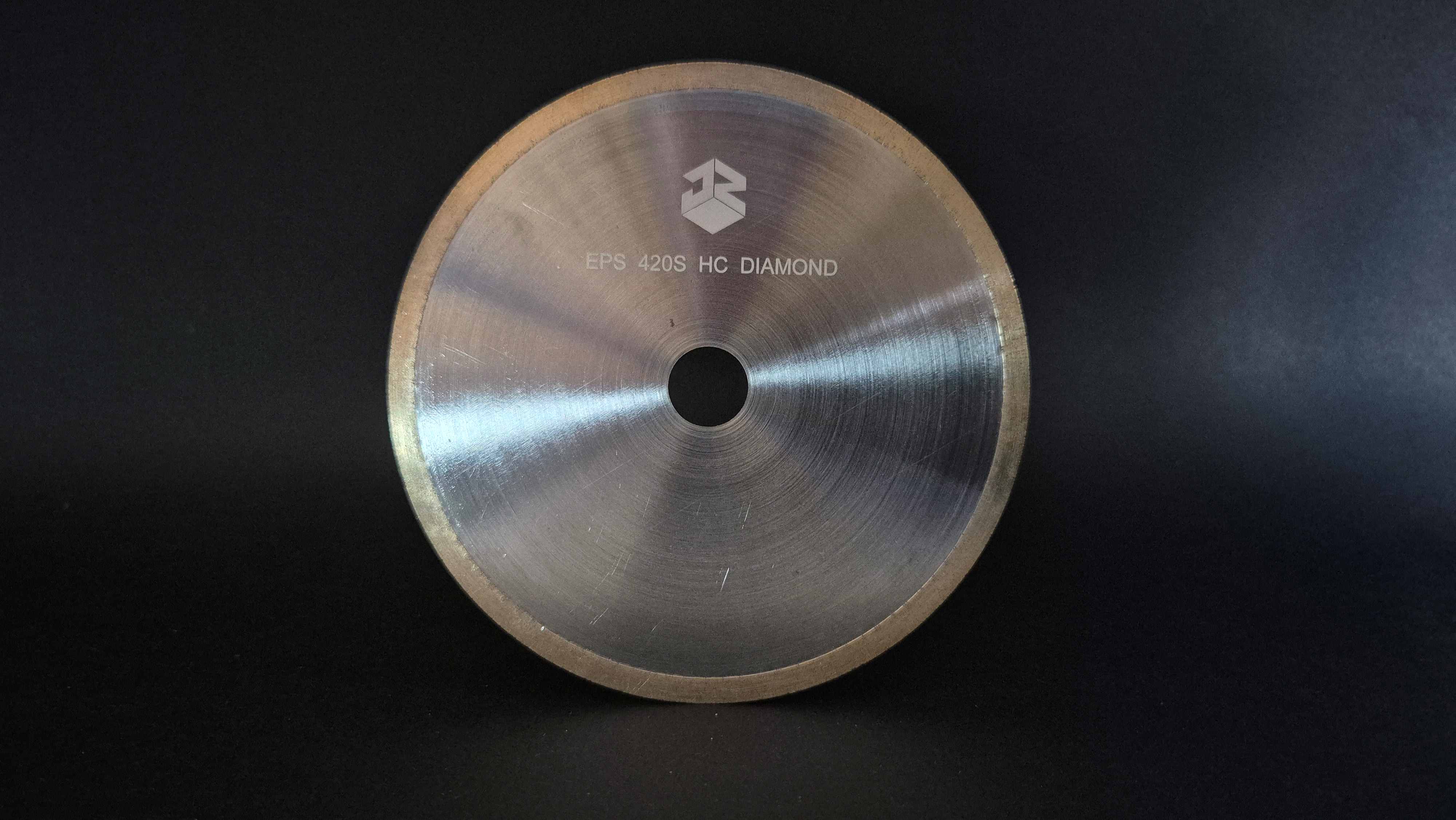

EPS 420S HC DIAMOND
0.3mm thickness / 12.7mm arbor / medium grit / high concentration
5 inch
EPS 520S LC DIAMOND
0.4mm thickness / 12.7mm arbor / medium grit / low concentration
5 inch
EPS 520S HC DIAMOND
0.4mm thickness / 12.7mm arbor / medium grit / high concentration
6 inch
EPS 620S HC DIAMOND
0.4mm thickness / 12.7mm arbor / medium grit / high concentration
6 inch
EPS 620S LC DIAMOND
0.5mm thickness / 12.7mm arbor / medium grit / low concentration
6 inch
EPS 615S LC DIAMOND
0.5mm thickness / 12.7mm arbor / fine grit / low concentration
6 inch
EPS 620P HC DIAMOND
0.5mm thickness / 12.7mm arbor / medium grit / high concentration
7 inch
EPS 730S DIAMOND
0.7mm thickness / 12.7mm arbor / medium grit / high concentration
7 inch
EPS 740S CBN
0.8mm thickness / 12.7mm arbor / medium grit / high concentration
8 inch
EPS 820S DIAMOND
0.7mm thickness / 12.7mm arbor / medium grit / low concentration
8 inch
EPS 830S DIAMOND
1.0mm thickness / 22mm arbor / medium grit / low concentration
8 inch
EPS 840S DIAMOND
0.6mm thickness / 16mm arbor / medium grit / low concentration
10 inch
EPS 1020S DIAMOND
1.0mm thickness / 32mm arbor / medium grit / high concentration
10 inch
EPS 1030S DIAMOND
1.2mm thickness / 32mm arbor / medium grit / high concentration
10 inch
EPS 1050S CBN
1.3mm thickness / 32mm arbor / medium grit / high concentration
12 inch
EPS 1220S CBN
1.8mm thickness / 31.75mm arbor / medium grit / high concentration
14 inch
EPS 1430S CBN
1.8mm thickness / 32mm arbor / medium grit / high concentration
14 inch
EPS 1440S DIAMOND
1.5mm thickness / 32mm arbor / medium grit / high concentration
